is custom made. We do not stock units in "standard"
sizes. As each one is made to order, our customers always
receive a product which was made exactly
to their own specifications.It's much easier on you if we
adjust the swimming pool dome rather than forcing you to alter
your deck or landscape.
After your order is received, it is placed on the production
schedule and produced in the order it was received. The engineering
department uses your specifications to calculate items relating
to stress, load, etc. Plans are then drawn for your particular
enclosure. The plans will include the cutting charts, entry
placement, and the prescribed order of assembly for your individual
unit. This process enables us to provide you with an
end product of quality and strength.
All of our products are manufactured to exacting
tolerances using state of the art equipment.

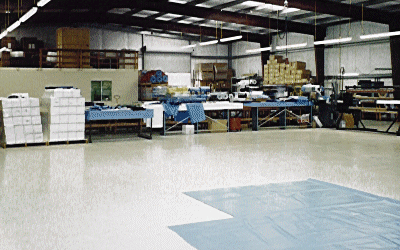

The actual manufacturing area is kept remarkably clean in
to isolate any contaminants from the manufacturing process.

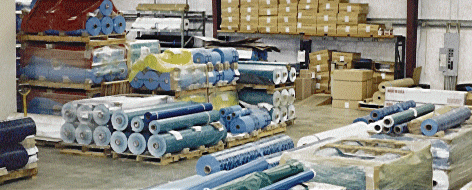

The vinyl from which the domes are made is delivered to the
factory on large rolls. The rolls of vinyl are typically 1.8m
wide and hundreds of metres long. They are reduced to the
proper widths with the use of a "slitter". The material
is fed through the slitter's razor sharp blades and then placed
on the cutting tables.

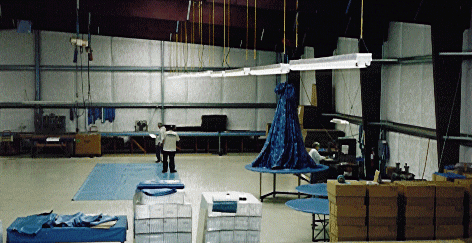

Using the plans provided by engineering, the individual sections
of the enclosure are then hand dimensioned to form each panel.
While this is occurring, the cable anchor hem assembly is
manufactured in another area of the plant. The panels are
"welded" together to form the walls ceiling and
corners of the unit. This "welding" process is completed
with the use of "radio frequency" sealing machines.
This "welding" process produces an end product that
is both attractive and extremely strong in structural integrity.
Certain components areas of the dome are stitched. One of
these is the zip entry which is sewn onto a polyester reinforced
panel and then attached to the desired area of entry. This
stitching is generally used in areas of unusually high stress.
By using these methods of construction, we can be sure that
your dome will provide you a maximum lifespan and years of
trouble free service.
